Flows

Flows are a top-level design element that allow you to create a visual representation of a conversation between your Mpower Agent A virtual agent created with CXone Mpower Agent Builder that can handle voice or chat interactions. and contacts The person interacting with an agent, IVR, or bot in your contact center.. Flows are a different way to work with your intents The meaning or purpose behind what a contact says/types; what the contact wants to communicate or accomplish.. Like stories Used to train an Mpower Agent for interaction handling based on intent and context. and rules Used to define an Mpower Agent's response to messages that don't change with context., flows allow you to design conversations tied to intents that teach your Mpower Agent how to respond to those intents.

Flows take the place of stories and rules in your Mpower Agent's configurations, so you don't need to create all three. The only time you'd need to create a story or rule would be if you need to use an Mpower Agent action that flows don't support yet. You still need to configure fallback in addition to flows.

Glossary

Concept	Definition	Example	What the Mpower Agent Does
Utterance	Anything a contact The person interacting with an agent, IVR, or bot in your contact center. says in an interaction The full conversation with an agent through a channel. For example, an interaction can be a voice call, email, chat, or social media conversation.. Sometimes called a message.	"I lost my password." "What is my balance?" "Are you a bot?"	The Mpower Agent uses Natural Language Understanding (NLU) to analyze each contact utterance to determine its meaning, or intent.
Intent	What the contact wants to communicate or accomplish. Every message the contact sends has an intent.	"I lost my password" has the intent of "reset password". "Hello" has the intent of "greeting".	The Mpower Agent analyzes a contact's message using NLU This process expands on Natural Language Processing (NLP) to make decisions or take action based on what it understands. to determine the intent. Once it knows that, it can respond with a message of its own. You configure the response you want your Mpower Agent to use for each intent.
Entity	A defined piece of information in a contact's message.	Person or product name, phone number, account number, location, and so on.	The Mpower Agent uses NLU to identify entities in a contact's message. Entities help the Mpower Agent understand what the contact's message means.
Slot	An entity extracted from a contact's message and saved for use in Mpower Agent responses. Similar to a variable.	Creating a slot for contact name lets the Mpower Agent use that name in responses during an interaction, making it more personal.	When configured to do so, the Mpower Agent extracts an entity from a contact message and saves it in a slot. You can have your Mpower Agent use this information later in the conversation.
Rule	Defines Mpower Agent responses to messages that don't change meaning with context.	Single-turn interactions with fixed responses: What are your hours? What is your address? Conversation building blocks: Greetings, good-byes, thank yous and transitions; simple yes/no questions; and acknowledgments. Mpower Agents come with default intents and rules for several of these, including greetings, handover The transfer of a contact from a virtual agent to a live agent. requests, and more. FAQs Insults and classic bot challenges	Rules are one of two ways you can configure how your Mpower Agent responds to an intent. Rules are useful for certain kinds of intents, but not all intents.
Story	Trains an Mpower Agent to handle an interaction based on message intent and conversational context.	In an interaction about a forgotten password, the Mpower Agent would respond to "How do I do that?" in one way. If the interaction were about creating a new account, the response would be quite different even though in both cases the contact is using the same words with the same intent—to get more information.	Stories are the second of two ways you can configure how your Mpower Agent responds to an intent. Stories teach the Mpower Agent how to use the context of the conversation to respond appropriately.
Mpower Agent Action	Anything an Mpower Agent says or does while handling an interaction.	In an interaction about a forgotten password, the Mpower Agent responds by sending the link to the password reset FAQ on the website. When a contact expresses frustration, such as "I don't understand! It's not working!!!" the Mpower Agent responds with "I'm sorry. Would you like me to transfer you to a human agent?" When the contact says yes, the Mpower Agent initiates the transfer.	Mpower Agent actions are the options you have when defining how you want your Mpower Agent to respond to each intent. They give you the flexibility to configure each response to achieve the outcome that meets the contact's needs.

Flow Designer

The flow designer is a dot-grid canvas workspace where you can add contact The person interacting with an agent, IVR, or bot in your contact center. and Mpower Agent messages, similar to what you do when creating stories Used to train an Mpower Agent for interaction handling based on intent and context. or rules Used to define an Mpower Agent's response to messages that don't change with context.. As you add messages to a flow, they're automatically connected with lines to show the flow of the conversation from message to message.

After each Mpower Agent response, you can create branches in the conversation by adding one or more contact messages. Each contact message branch represents an intent the contact might introduce at that point in the conversation. This allows you to design a flow that includes the different kinds of requests or responses your contacts make.

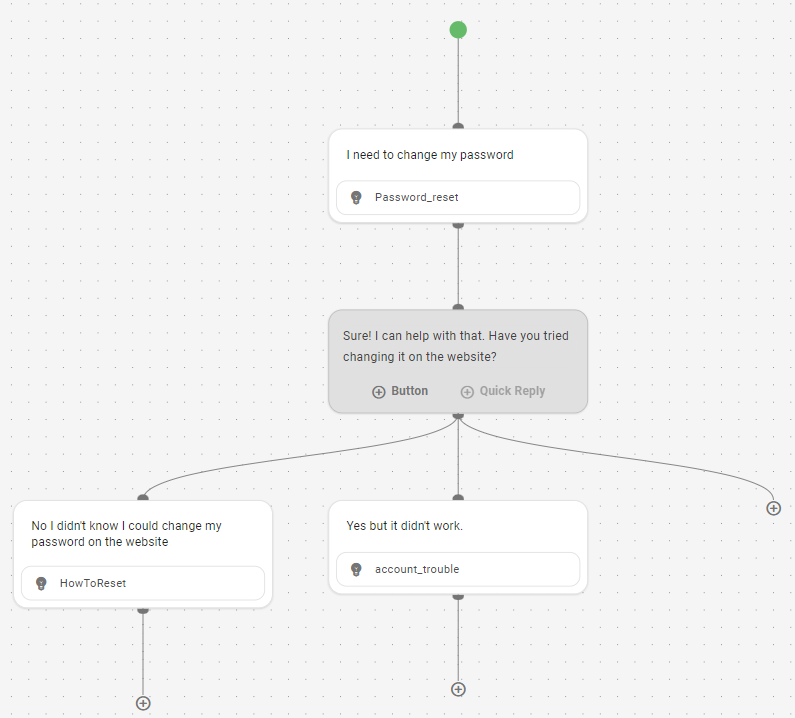

For example, if the flow starts with the contact asking about changing their password, the Mpower Agent can ask if the contact has tried changing the password on the website. You can add contact messages that branch the conversation based on the contact's response to the Mpower Agent's question.

With each branch in the flow, you can build out the conversation by adding the Mpower Agent's response and follow-up messages from the contact. You should only add to the conversation in a flow if the messages you add belong in the context of that flow. You will learn more about Mpower Agent context in the following section on this page.

The flow designer includes the Agent Builder Copilot that lets you quickly generate a new flow based on natural language. Use language like "Create a flow that handles an address change request." The Agent Builder Copilot builds a flow with messages (intents) and scripts. You simply fine-tune the generated flow for your use. The Agent Builder Copilot is limited to creating a new flow at this time.

Teaching Your Mpower Agent with Flows

Flows teach your Mpower Agent about the conversational context, or how intents are related to each other. When a flow starts with an intent, the Mpower Agent learns that subsequent intents can only occur after the initial intent.

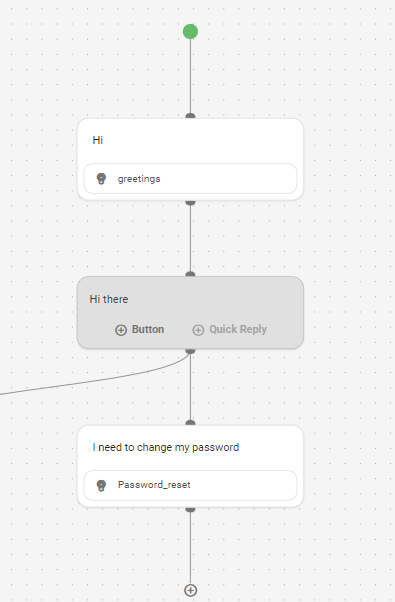

For example, a flow starts with the contact message Hi (intent: greetings), which is followed by an Mpower Agent response and then another contact message. The second contact message introduces another intent into the flow. This teaches the Mpower Agent that the second intent is related to and depends on the first. If the second contact message is I need to change my password, the Mpower Agent learns that the contact can only ask about changing passwords immediately after the greeting intent.

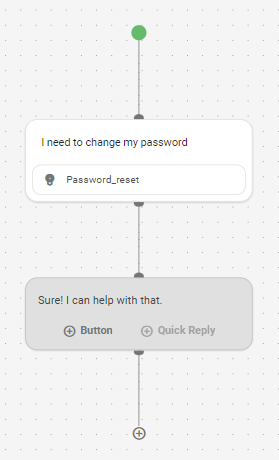

If you want your contacts to be able to ask about changing their passwords at any point in the conversation, a better approach is to create a separate flow for password changes. This is shown in the following image.

Your Mpower Agent can jump from one conversational context to another depending on the flows you build. Within each flow, only include intents that depend on the context of the flow. If an intent does not depend on the context of another intent, it should be a separate flow.

Intents that Depend on Context

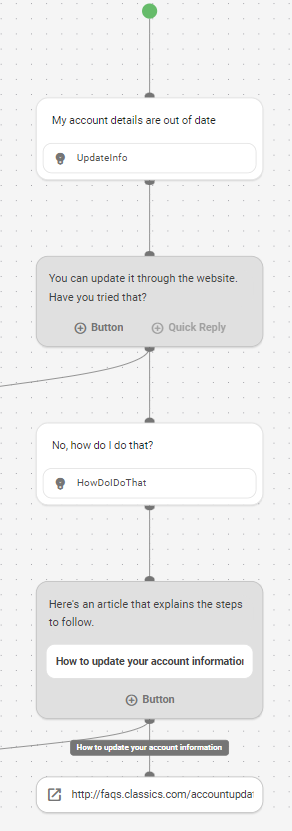

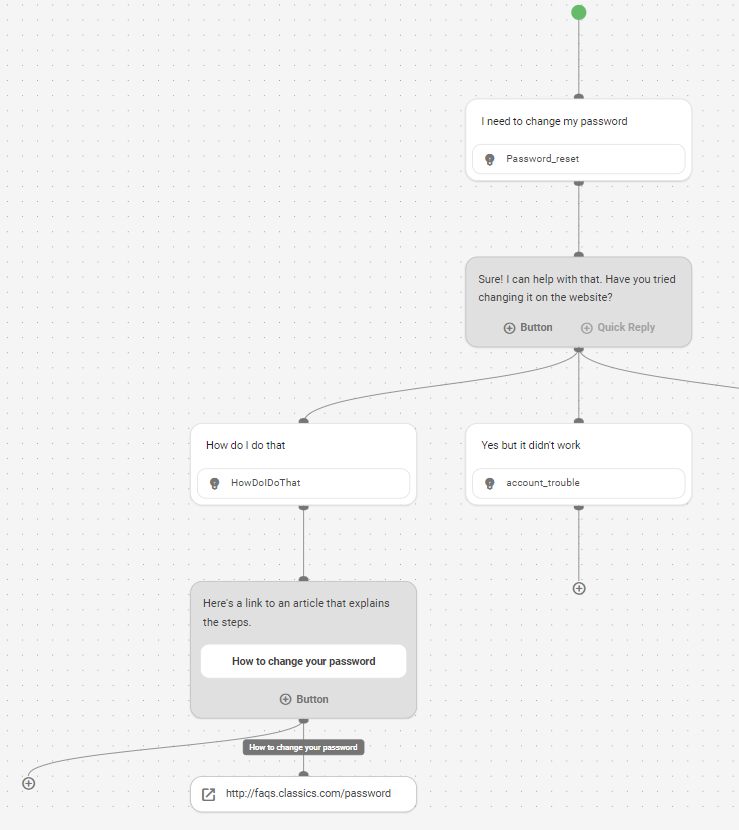

Some intents might depend on context for the Mpower Agent to learn how to respond appropriately. For example, for a contact response such as "how do I do that," the Mpower Agent depends on the conversation's context to understand how to respond. The following images show the same intent (intent: HowDoIDoThat) in two different contexts. The Mpower Agent uses the context of the conversation to determine how to respond.

Including the HowDoIDoThat intent in the same flow as the conversation about a task helps the Mpower Agent learn how to respond to HowDoIDoThat in the context of that particular intent. You may have several intents that include the HowDoIDoThat intent in their flow. The Mpower Agent's response for each intent is likely different.

The Mpower Agent learns to use a different response depending on the context of the conversation.

Connections Between Flows

Flows can be triggered by the contact The person interacting with an agent, IVR, or bot in your contact center. at any point during the conversation. If the contact makes a request in the middle of the conversation that's unrelated to the current intent The meaning or purpose behind what a contact says/types; what the contact wants to communicate or accomplish., the Mpower Agent switches to the flow for the new intent. Mpower Agents can handle context-switching and return to the unfinished intent, but you must ensure that you have the flows set up to train them to handle it.

You can design flows so they trigger other flows where appropriate based on the context of the conversation. Buttons and quick replies allow you to specify a jump to a different flow. For example, in a flow for handling the initial greeting phase of a conversation, the Mpower Agent prompts the contact with a series of quick replies to help narrow down the intent. Each quick reply is configured to trigger the flow for that intent. When the contact chooses a quick reply, the Mpower Agent jumps to that flow.

Buttons and quick replies can also trigger intents. When you trigger an intent, the conversation continues within the same flow. Triggering an intent is only appropriate when the intent depends on the context of the conversation. If the intent is independent on the context of the conversation, you should build it in a separate flow and trigger the flow instead.

Branches Within Flows

Adding buttons or quick replies to an Mpower Agent response creates branches in the flow. When a button or quick reply triggers an intent The meaning or purpose behind what a contact says/types; what the contact wants to communicate or accomplish., the flow of that branch must be completed with additional Mpower Agent responses, intents, or both. Some branches may contain additional sub-branches. Branches that trigger other flows or open URLs end with that action and cannot be added onto.

When completing branches, be careful about introducing additional intents. Remember to keep the flow of each branch within the context of the overall intent of the flow.

Ensure that every branch within your flows is complete. Incomplete branches result in an Mpower Agent that doesn't know how to respond to an intent. It will follow fallback.
